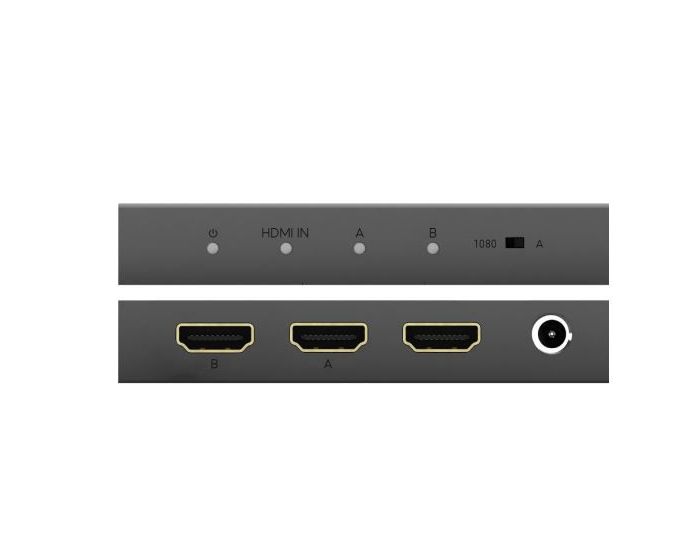

HDMI Splitter MAX (1x2)
Split one HDMI source device to 2 displays via HDMI with the 1x2 Splitter MAX from HDANYWHERE.
These splitters supports the full HDMI 2.0 (a/b) 18Gbps max data rate, and is capable of carrying the most premium UHD/4K 60 4:4:4 content, making it the ultimate splitter option for cinema purists. It also supports all HDR formats (10-bit & 12-bit) such as Dolby Vision®, HDR10+ and HLG.
The 1x2 Splitter MAX works with 1080p and Ultra HD 4K HDMI devices alike, such as SkyQ, AppleTV, Xbox One, TV Stick, PS3/PS4, Blu-Ray, DVD, Roku, Virgin Tivo and many more.
1x2 Splitter MAXs can even be stacked up to 4 times, so you can distribute to even more displays!
Distribute up to 100m from the 1x2 Splitter MAX using our ActiveWire MAX or Fibre Optic MAX cables.
Features:
- HDMI® 2.0 (a/b) HDCP 2.2 compliant
- 18Gbps data rate throughout
- Advanced EDID management
- Supports all resolutions up to and inc. Ultra HD 4K 60 4:4:4
- Supports all current High Dynamic Range (HDR) formats
- Supports all current audio formats up to Dolby Atmos® and DTS:X®
- Built-in equalizer and re-timer
Specification:
- Form factor: Lightweight slender aluminium enclosure
- Inputs x outputs: 1 HDMI / 2 HDMI
- Transmission tech: Native HDMI
- Video bandwidth: 594MHz
- ESD protection: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
- Device / Package weight: 165g
- Dimensions (W/D/H): 100 / 56 / 16mm
- Power Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
- Operating temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative humidity: 20~90 % RH (non-condensing)
- Power consumption: 2 W
- Guarantee: 2-year guarantee
| Shipping Weight (kg) | 0.300000 |
|---|---|
| Type | Video Splitter |
| Manufacturer | HDANYWHERE |
| No Inputs x No Outputs | 1x2 |
| Warranty | 2 years |
| Colour | Charcoal |
| Form Factor | Compact |
| Input Types | HDMI |
| Audio Input Types | N/A |
| Maximum Video Inputs | 1 |
| Supported Outputs | HDMI |
| Audio Output Types | N/A |
| Maximum Video Outputs | 2 |
| Supported Video Resolution | 4K 60Hz 4:4:4 |
| Supported Audio Formats | Dolby Digital Plus 7.1, Dolby TrueHD 5.1, Dolby TrueHD 7.1, DTS-HD Master 5.1, DTS-HD Master 7.1 |
| IR Control | N/A |
| Multiroom Capable | No |
| HDMI Version | HDMI® 2.0 (a/b) |
| HDCP | HDCP 2.2 |
