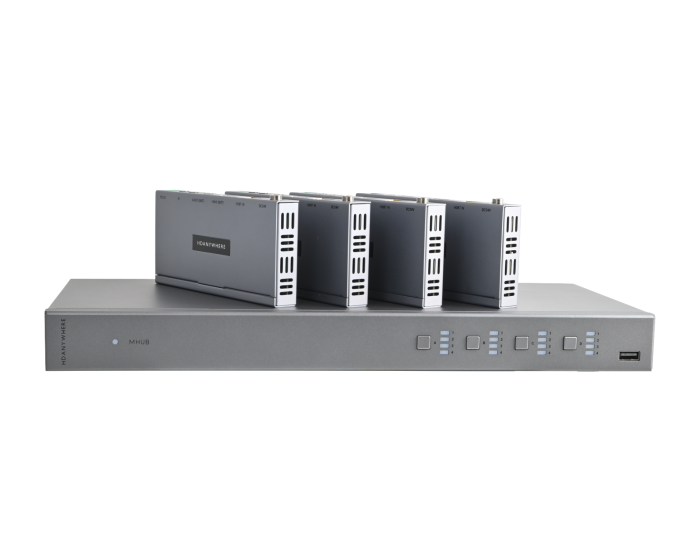

HDANYWHERE MHUB 4x4 100A.
MHUB is a single-brand integrated smart home solution, which can include in-room remotes for midmarket luxury residential and light commercial projects. With ‘uControl inside’, HDA’s everyday smart home hubs are cleverly disguised as an AV Matrix. The uControl Processor inside HDANYWHERE’s newest 4x4 transforms it into an integrated smart home hub for managing media, music and mood, room-to-room with the groundbreaking uControl Smart Remote or app, in up to 4 zones.
Form & IO:
- Chassis: 372 x 165 x 36
- Display receiver: 140 x 65 x 18mm
- Weight: (Chassis) 1631g | (RX) 126g
- Material: Chassis: Steel and Aluminium | RX: Aluminium
- Colour: Carbonite (grey)
- Operating temp: 0°C - 40°C / 32°F - 104°F
- Storage temp: -20°C - 60°C / -4°F - 140°F
- Relative humidity: 20 - 90% (Non-condensing)
- Inputs: x4 HDMI
- Outputs: x4 HDBaseT, x1 HDMI (Mirror), x4 Optical, x4 3.5mm Stereo
Technical Specs:
- Trans distance: 1080p 150m / 492ft | 4K 100m / 394ft
- Video resolution: Up to 4K@60Hz (4:4:4) with HDR
- HDR formats: HDR10, HDR10+, Dolby Vision, HLG*
- HDMI audio formats: PCM 2.0 / 5.1 / 7.1, Dolby Digital / Plus / EX, Dolby True HD, DTS, DTS-EX, DTS-96 / 24, DTS High Res, DTS-HD Master Audio, DSD
- Audio extraction: Optical: PCM 2.0, Dolby Digital, DTS 5.1 | 3.5mm Stereo: LPCM 2Ch
- Stereo audio formats: PCM 2.0 44.1 / 48 / 88.2 / 96 / 176.4 / 192KHz, 16 / 20 / 24bit
- MHUB Power: 24V 2.7A (4x4) / 24V 3.75A (6x6)
- Display receiver Power: 24V PoC (Power over Cat)
- Power Consumption: 55.2W Max (4x4) / 75W Max (6x6)
| Shipping Weight (kg) | 4.000000 |
|---|---|
| Type | Video Matrix |
| Manufacturer | HDANYWHERE |
| No Inputs x No Outputs | 4x4 |
| Distance at Max. Resolution | 100m (4K) / 150m (1080p) |
| Product Range | MHUB |
| Maximum Video Inputs | 4 |
| Maximum Video Outputs | 4 |
| Supported Video Resolution | 1080p, 4K 60Hz 4:4:4 |
| Multiroom Capable | No |
