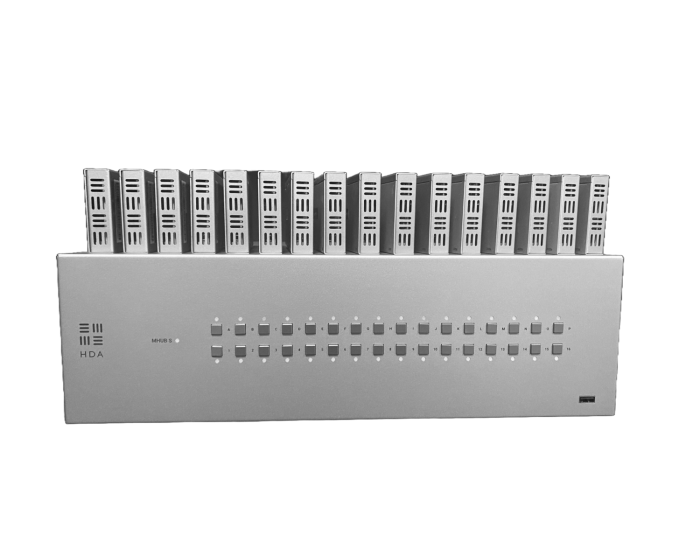

MHUB S
The everything-in-one-box (stackable) system.
Get in & out like you’re AV special forces with the new MHUB S (16+16x16) 100A and A DM variant, the biggest multimedia hub yet from HDANYWHERE.
MHUB S delivers and manages media and music throughout large installations without compromising performance or user experience. Whether the project requires 16 or 160 displays, stack your way to success with multiple MHUB S.
It’s possible to deploy more than 64 zones in less than 60 minutes with the MHUB S - the everything-in-one-box stackable system. Unlike the AV-over-IP systems that require complex network configurations, MHUB S allows integrators to sidestep complexity for simplicity with less hardware and streamlined plug-and-play setup.
uControl inside.
For simple, uncomplicated complete system control.
Volume control.
For easy connection to power amps.
Home Automation Drivers.
For integration with popular control systems.
Volume controllable audio, exactly how you want it.
All audio outputs have volume control for easy integration with any third-party amplifier. Optional models also feature Dolby Atmos Dowmixing for consistent audio playback and enjoyment in up to 4 Zones.
Features:
- Supports formats up to 4K@60Hz (4:4:4) including HDR and Dolby Vision*.
- Auto downscaling on all outputs.
- Multi-channel digital audio support up to and including Dolby/Atmos and DTS:X.
- HDMI Input Mirrors for stacking multiple MHUB S systems (10+).
- HDMI Output Mirrors for AVRs and output expansion.
- Audio extraction on all outputs (match source or follow output).
- Dolby Atmos & DTS-HD audio downmix to 2ch PCM stereo on x4 ports. Pass-through audio extraction up to Dolby Digital / DTS 5.1 with no downmix on x12 audio ports.
- Line-level (Pre-Out) volume control all audio outputs.
- Bi-directional IR.
- IR Cascading (maximum x4 MHUB S).
- CEC support for display control.
- uControlTM inside.
- Works with uControlTM Remote.
- Remotely manageable.
- 2 Year Warranty (+3 with HDA Cloud Registration).
*Only Dolby Vision Low Latency Mode is supported at 60Hz over Video TPC output.
| Shipping Weight (kg) | 22.000000 |
|---|---|
| Type | Video Matrix |
| Manufacturer | HDANYWHERE |
| No Inputs x No Outputs | 16+16x16 |
| Distance at Max. Resolution | 100m (4K) / 150m (1080p) |
| Product Range | MHUB |
| Multiroom Capable | No |
