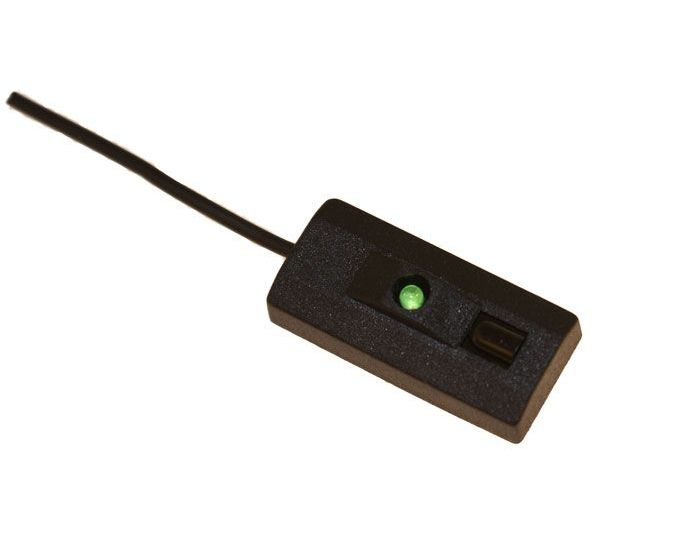

Keene Fascia mount Infra Red receiver.
This is ideal if you have a black fascia screen and would like a discreet solution to attach to the front (it only measures 34mm long x 16mm wide x 9mm deep). The Fascia mount IR receiver attaches by small sticky pads and has a small confirmation LED which flashes to provides visual confirmation that the signal has been received. A handy cable clip is also supplied to hold the receiver's cable out of the way behind the screen.
Super fast electronics and a semi-wideband capability make it really effective to use whilst it's compact size makes it very unobtrusive.Typical IR receivers require a minimum of 10 cycles before they can lock onto the signal. This receiver will work with just 3 or 4 cycles. This fast circuitry enables it to work with set top boxes that use very short bursts of IR code (known as RCMM code), as used for example by some BT Vision set top boxes.
ALL the Keene IR Distribution systems are designed to filter and reject unwanted interference from Plasma & LCD screens to give you dependable, reliable results every single time.
Specifications:
Operating distance: up to 20m*
IR Bandwidth: 30-60KHz
Dimensions: 34 x 16 x 9mm
Cable length: 2.5 metre
(*when used with high output emitters, 10m typical)
It is supplied fitted with a captive 2.5 metre 3.5mm jack cable which gives enough length for most local installations, and can be easily extended by using our range of extension cables (please see the link below).
(Important)
This IR Receiver is designed to work with other Keene manufactured IR distribution systems such as the IRBKIT, IRPRO4, IRBKITM, KIRA, IRC etc.
You can also use this receiver with any other manufacturers equipment by combining it with the Receiver Adaptor
Other IR receiver options
We offer a whole range of IR receiver options to suit your Home Cinema requirements.
Standard receiver
Wall plate receiver built into a standard single gang pattress with frosted front plate
Black panel mount receiver
White panel mount receiver
Brass panel mount receiver
Chrome panel mount receiver
Extension cables and adaptors
We recommend that you only use jack cables to extend the range upto 12 metres. If you wish to go further than this we recommend using Cat5 / 6 cable and our KA175 adaptors to do this.
3 metre jack extension cable
5 metre jack extension cable
10 metre jack extension cable
Cat5 / 6 adaptor pair
You can also view the IR Receiver and emitter connection diagrams here (Acrobat pdf file)
This is ideal if you have a black fascia screen and would like a discreet solution to attach to the front (it only measures 34mm long x 16mm wide x 9mm deep). The Fascia mount IR receiver attaches by small sticky pads and has a small confirmation LED which flashes to provides visual confirmation that the signal has been received. A handy cable clip is also supplied to hold the receiver's cable out of the way behind the screen.
Super fast electronics and a semi-wideband capability make it really effective to use whilst it's compact size makes it very unobtrusive.Typical IR receivers require a minimum of 10 cycles before they can lock onto the signal. This receiver will work with just 3 or 4 cycles. This fast circuitry enables it to work with set top boxes that use very short bursts of IR code (known as RCMM code), as used for example by some BT Vision set top boxes.
ALL the Keene IR Distribution systems are designed to filter and reject unwanted interference from Plasma & LCD screens to give you dependable, reliable results every single time.
Specifications:
Operating distance: up to 20m*
IR Bandwidth: 30-60KHz
Dimensions: 34 x 16 x 9mm
Cable length: 2.5 metre
(*when used with high output emitters, 10m typical)
It is supplied fitted with a captive 2.5 metre 3.5mm jack cable which gives enough length for most local installations, and can be easily extended by using our range of extension cables (please see the link below).
(Important)
This IR Receiver is designed to work with other Keene manufactured IR distribution systems such as the IRBKIT, IRPRO4, IRBKITM, KIRA, IRC etc.
You can also use this receiver with any other manufacturers equipment by combining it with the Receiver Adaptor
Other IR receiver options
We offer a whole range of IR receiver options to suit your Home Cinema requirements.
Standard receiver
Wall plate receiver built into a standard single gang pattress with frosted front plate
Black panel mount receiver
White panel mount receiver
Brass panel mount receiver
Chrome panel mount receiver
Extension cables and adaptors
We recommend that you only use jack cables to extend the range upto 12 metres. If you wish to go further than this we recommend using Cat5 / 6 cable and our KA175 adaptors to do this.
3 metre jack extension cable
5 metre jack extension cable
10 metre jack extension cable
Cat5 / 6 adaptor pair
You can also view the IR Receiver and emitter connection diagrams here (Acrobat pdf file)
| Shipping Weight (kg) | 0.075000 |
|---|---|
| Manufacturer | Keene Electronics |
| Type | IR Receiver |
| Product Range | Keene IR |
| Warranty | 1 year |
| Length | 2.5m |
