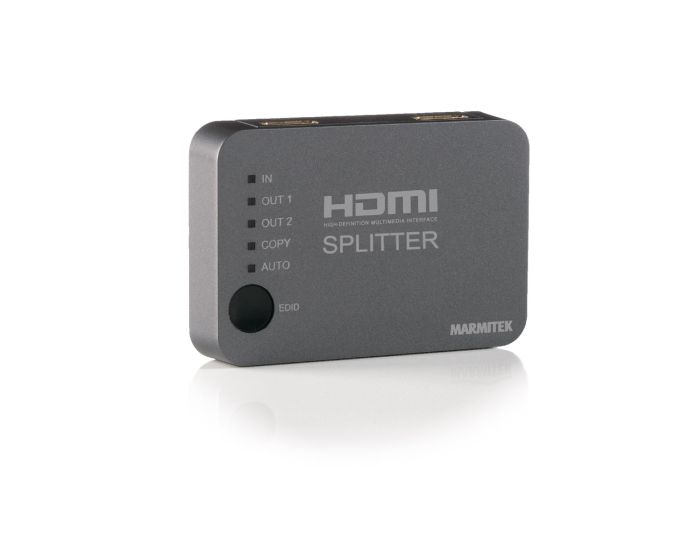

Split your HDMI signal to a 2nd TV or projector.
Allows video and audio from your digital TV decoder, satellite receiver, game console or Bluray player to be simultaneously displayed on 2 screens (TV or projector).
Eliminates the need to change HDMI cables if you want to watch films or play games on another screen.
Suitable for Ultra HD 4K, Full HD 1080p and all 3D formats.
Supports HD Audio and all other common audio formats.
If required, select your maximum video resolution on the HDMI output, using the unique EDID switch.
Set Contents
1x HDMI splitter
1X Power adapter
1x Usage instructions
Technical Data
Connections
HDMI input 1x HDMI (19-pin female)
HDMI output 2x HDMI (19-pin female)
HDMI cable length max. 15 metres
Video
Supported resolutions 480p, 576p, 720p, 1080i, 1080p and 4k2k@24/30
HDMI standards HDCP, CEC, EDID, DVI, all 3D formats, Deep colour (36-bit), x.v.colour
Video Bandwidth 10.2Gbps
Clock frequency 300MHZ
Audio
HDMI audio DTS-HD Master Audio, Dolby TrueHD,
LPCM 7.1, DTS, Dolby-AC3 and 2.0CH
Housing
Dimensions (D x W x H) 87 x 60 x 19mm
Weight 60g
| Shipping Weight (kg) | 0.820000 |
|---|---|
| Type | Video Splitter |
| Manufacturer | Marmitek |
| No Inputs x No Outputs | 1x2 |
| Warranty | 1 year |
| Colour | Black |
| Form Factor | Compact |
| Input Types | HDMI |
| Audio Input Types | 3.5mm Stereo |
| Maximum Video Inputs | 1 |
| Supported Outputs | HDMI |
| Audio Output Types | 3.5mm Stereo |
| Maximum Video Outputs | 2 |
| Supported Video Resolution | 4K 60Hz 4:2:0 |
| Supported Audio Formats | Dolby TrueHD 5.1 |
| IR Control | No |
| Main Power | 5V |
| Multiroom Capable | No |
| HDMI Version | HDMI® 1.4 |
| HDCP | HDCP 2.2 |
